System process:
introduction:

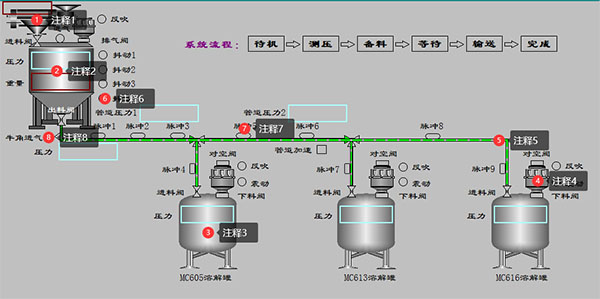

This system is a powder positive pressure conveying system.

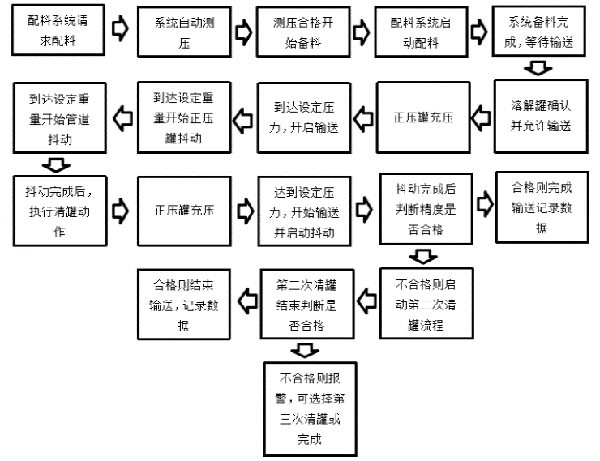

Working principle: The system receives the signal from the batching system and starts quantitative batching. After the batching is completed, it is sent to the dissolving and mixing tank by means of positive pressure tank filling; at the same time, the system has real-time weight monitoring function and high alarm protection.
function: unloading storage reminder function, automatic material preparation function, automatic metering and conveying function, automatic cleaning function, material anti-sticking function, abnormal alarm, data recording and other functions
System parameters:
Material: The main pipe is made of stainless steel (304/316L) lined with EPDM/silicone, and the hose is EPDM/silicone
Single feeding volume: 0-1000L, delivery flow: 0-50L/min adjustable, delivery pressure: 0-2bar, accuracy error ±0.1-0.5% (depending on material characteristics).
Remarks: For detailed plan, please contact technical engineer
