Company Profile
Founded in 1954, Lutz is a family-owned company. Lutz specializes in fluid transportation through barrel pumps and container pumps. In 1954, Karl Lutz founded the Lutz company and began to produce electric barrel pumps and container pumps in Wiltheim. In recent years, the Lutz brand has become synonymous with any liquid filling and delivery system.
At present, Lutz Group has many very powerful medium-sized enterprises in different industries in Germany and abroad. The addition of these companies has greatly expanded the range of Lutz products. In addition, the internal cooperation between Lutz Pump Co., Ltd., MTE and Lutz-Jesco also enables customers to enjoy more comprehensive services. After Technopool joined the group in 2003, we added swimming pool water treatment equipment to our product line.

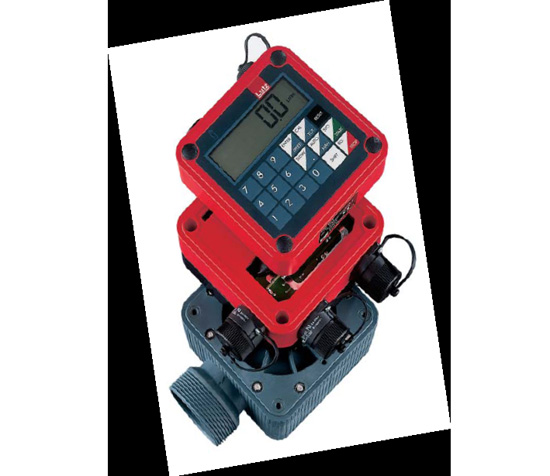

technical parameter:
Shell: PP/316L/aluminum alloy
Gear: stainless steel
Shaft: Nickel-based alloy (2.4610)
Seal: Viton? (optional with FEP)
Measuring range: above 5 centipoise, 3-360 liters/min
Viscosity: Maximum 500,000 centipoise
Working pressure: up to 16 bar
Accuracy: +/- 0.5%
Repeatability: 0.03%
Temperature: Maximum 80 °C
Connection method: G1
advantage:
Touch screen with multi-language operation menu
Simple modular structure. easy to use
Accurate measurement with high repeatability
Basically no need to repeat calibration
Low pressure loss
Comprehensive monitoring and safety functions
External control connection module/data estimation through standard interface
The relay module can be used at any time
Representative application areas are as follows:
Acids and bases, chemical solutions, organic and inorganic compounds, fuels, diesel, motor oil and additives;
Acid-base solution, etching solution, pickling solution, sewage, solvent, thinner, hardener, paint coating, ink;
Cutting oil, refrigerant, hydraulic oil, gear oil, cleaning agent, penetrating fluid;
Flavors and fragrances, vegetable oils, foods, medicines, disinfectants;
Epoxy resin, rubber, adhesive, glue, low viscosity grease, latex, syrup, glucose, cream, mousse;
